HARDWARE FEATURES

Interface
24× 10/100/1000 Mbps RJ45 Ports 4× 1/10 Gbps SFP+ Slots 1× USB 2.0 Port 1× RJ45 Console Port 1× USB Type-C Console Port

Fan Quantity
Fanless

Power Supply
100-240 V~50/60 Hz

Dimensions ( W x D x H )
17.3 × 7.1 × 1.7 in (440 × 180 × 44 mm)

Mounting
Rackmountable

Max Power Consumption
19.90 W (110 V/60 Hz)

Max Heat Dissipation
67.86 BTU/hr (110 V/60 Hz)

PERFORMANCE

Switching Capacity
128 Gbps per Unit

Stacking
Stacking Number: 4 Stacking Port: 10G SFP+ Slot (all uplink ports can be used as stacking ports) Stack Bandwidth: Up to 40 Gbps (4 stacking ports)

Packet Forwarding Rate
95.23 Mpps

MAC Address Table
16 K

Packet Buffer Memory
12 Mbit

Jumbo Frame
9 KB

SOFTWARE FEATURES

Quality of Service
Class of Service- 8 Queues of Priority- Port Priority- IEEE 802.1p Priority- DSCP Priority- Queue Min-Bandwidth- Schedule Mode (SP, WRR, SP+WRR) Bandwidth Control- Rate Limit- Storm Control Voice VLAN User-Defined OUI Smoother Performance Action for Flows- QoS remark (802.1P Remark, DSCP Remark)

L3 Features
IP Interfaces:- IPv4: Max 128, IPv6: Max 128 Static Routing- IPv4 Max 512, IPv6: Max 128 Host Route Table: Max 1,024 entries RIP: Version v1/v2, Max 1,796 OSPF: Version v2/v3; v2: Max 1,796, v3: Max 450 Static ARP: 512 static entries Dynamic ARP: 3,600 dynamic entries Proxy ARP DHCP Server:- Max 64 IP Pools- Max 1,000 Manual Binding Entries DHCP Relay:- Relayed Interface- Relayed VLAN

L2 and L2+ Features
Link Aggregation Spanning Tree Protocol Port-based and VLAN-based Loopback Detection 802.3x Flow Control ERPS Mirroring RSPAN MAC Address Table Multicast- IGMP Snooping- MLD Snooping- L2 Multicast Table: Max 2,000- Fast Leave- Multicast VLAN Registration (MVR)- Static Multicast Groups- Multicast Filtering

Advanced Features
Automatic Device Discovery† Batch Configuration† Batch Firmware Upgrading† Intelligent Network Monitoring† Abnormal Event Warnings† Unified Configuration† Reboot Schedule†ISP Features: 802.3ah Ethernet Link OAM L2PT (Layer 2 Protocol Tunneling) Device Link Detect Protocol (DLDP) DDM sFlow

VLAN
Max 4K VLAN Group (802.1q VLAN) 802.1Q Tagged VLAN MAC VLAN Entries: 60 Multicast VLAN Management VLAN VLAN VPN (QinQ): Max 256 entries GVRP Protocol VLAN: Protocol Template 16, Protocol VLAN 12 entries Voice VLAN Private VLAN

Security
Port Isolation CPU-Defend ARP Inspection (Dynamic ARP Inspection) DoS Defend IP-MAC-Port Binding-1,024 Entries- DHCP Snooping- ARP Inspection- IPv4 Source Guard IPv6-MAC-Port Binding-1,024 Entries- DHCPv6 Snooping- ND Detection- ND Snooping- IPv6 Source Guard DHCP Filter Static/Dynamic Port Security- Up to 64 MAC addresses per port Broadcast/Multicast/Unknown-unicast Storm Control- kbps/ratio control mode 802.1X- Port base authentication- Mac base authentication- VLAN Assignment- MAB- Guest VLAN- RADIUS authentication and accountability support AAA (including TACACS+) Secure web management through HTTPS with SSLv3/TLS 1.2 Secure Command Line Interface (CLI) management with SSHv2 IP/Port/MAC-based access control

MANAGEMENT

Omada App
Yes. Requiring the use of the Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.

Centralized Management
Omada Cloud-Based Controller Omada Hardware Controller Omada Software Controller

Cloud Access
Yes. Requiring the use of the Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.

Zero-Touch Provisioning
Yes. Requiring the use of the Omada Cloud-Based Controller.

Management Features
Web-based GUI Command Line Interface (CLI) through console port, telnet SNMPv1/v2c/v3- Trap/Inform- RMON (1, 2, 3, 9 groups) SDM Template DHCP/BOOTP Client 802.1ab LLDP/LLDP-MED DHCP Auto Install Dual Image, Dual Configuration CPU Monitoring Cable Diagnostics Password Recovery SNTP System Log IEEE 802.3az Energy Efficient Ethernet (EEE)

OTHERS

Package Contents

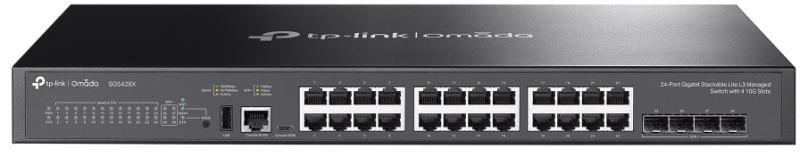

SG5428X Switch Power Cord Console Cable Rackmount Kit Rubber Feet Quick Installation Guide

System Requirements
Microsoft® Windows® 98SE, NT, 2000, XP, Vista or Windows 7/8/10/11, MAC® OS, NetWare®, UNIX® or Linux.

Environment
Operating Temperature: -5 °C to 45 °C (23 °F to 113 °F) Storage Temperature: -40 °C to 70 (-40 to 158 ) Operating Humidity: 10–90% RH non-condensing Storage Humidity: 5–90% RH non-condensing
