• CPUAMD Socket AM5, support for:
  AMD Ryzen 7000 Series Processors
  (Please refer "CPU Support List" for more information. )
• ChipsetAMD A620
• MemorySupport for DDR5 6400(OC) / 6200(OC) / 6000(OC) / 5600(OC) / 5200 / 4800 / 4400 MT/s memory modules
  4 x DDR5 DIMM sockets supporting up to 192 GB (48 GB single DIMM capacity) of system memory
  Dual channel memory architecture
  Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
  Support for AMD EXtended Profiles for Overclocking (AMD EXPO) and Extreme Memory Profile (XMP) memory modules
  (The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" on GIGABYTE's website for more information. )
• Onboard GraphicsIntegrated Graphics Processor:
  - 1 x DisplayPort, supporting a maximum resolution of 3840x2160@144 Hz
  * Support for DisplayPort 1.4 version.
  - 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
  * Support for HDMI 2.1 version and HDCP 2.3.
  * Support for native HDMI 2.1 TMDS compatible ports.
  - 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz
  Support for up to triple-display at the same time
  (Graphics specifications may vary depending on CPU support. )
• AudioRealtek® Audio CODEC
  High Definition Audio
  2/4/5.1/7.1-channel
  * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.
• LANRealtek® GbE LAN chip (1 Gbps/100 Mbps/10 Mbps)
• Expansion SlotsCPU:
  - 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16
  * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.
  Chipset:
  - 1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1
• Storage InterfaceCPU:
  - 1 x M. 2 connector (Socket 3, M key, type 2580 PCIe 4.0 x4/x2 SSD support)
  Chipset:
  - 4 x SATA 6Gb/s connectors
  RAID 0, RAID 1, and RAID 10 support for NVMe SSD storage devices
  RAID 0, RAID 1, and RAID 10 support for SATA storage devices
• USBCPU:
  - 1 x USB Type-C® port on the back panel, with USB 3.2 Gen 1 support
  - 1 x USB 3.2 Gen 1 port on the back panel
  - 1 x USB 2.0/1.1 port on the back panel
  Chipset:
  - 2 x USB 3.2 Gen 1 ports available through the internal USB header
  - 5 x USB 2.0/1.1 ports (3 ports on the back panel, 2 ports available through the internal USB header)
• Internal I/O Connectors1 x 24-pin ATX main power connector
  1 x 8-pin ATX 12V power connector
  1 x CPU fan header
  2 x system fan headers
  1 x addressable LED strip header
  1 x RGB LED strip header
  1 x M. 2 Socket 3 connector
  4 x SATA 6Gb/s connectors
  1 x front panel header
  1 x front panel audio header
  1 x USB 3.2 Gen 1 header
  1 x USB 2.0/1.1 header
  1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
  1 x Clear CMOS jumper

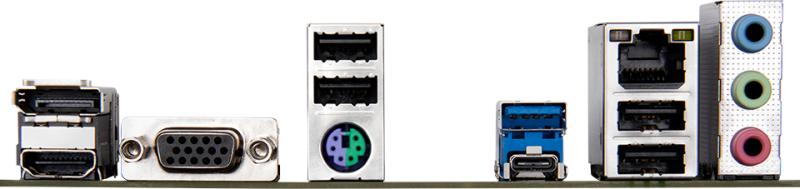

• Back Panel Connectors1 x PS/2 keyboard/mouse port
  1 x USB Type-C® port, with USB 3.2 Gen 1 support
  1 x USB 3.2 Gen 1 port
  4 x USB 2.0/1.1 ports
  1 x HDMI port
  1 x DisplayPort
  1 x D-Sub port
  1 x RJ-45 port
  3 x audio jacks
• I/O ControlleriTE® I/O Controller Chip
• H/W MonitoringVoltage detection
  Temperature detection
  Fan speed detection
  Fan fail warning
  Fan speed control
  * Whether the fan speed control function is supported will depend on the fan you install.
• BIOS1 x 256 Mbit flash
  Use of licensed AMI UEFI BIOS
  PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
• Unique Features Support for GIGABYTE Control Center (GCC) * Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. Support for Q-Flash
  Support for Q-Flash Plus
• Bundled SoftwareNorton® Internet Security (OEM version)
  LAN bandwidth management software
• Operating SystemSupport for Windows 11 64-bit
  Support for Windows 10 64-bit
• Form FactorMicro ATX Form Factor; 24.4cm x 24.4cm
