Model

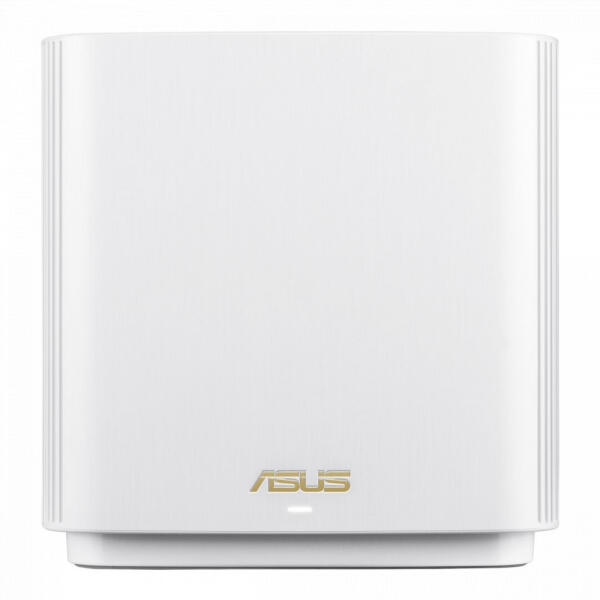

ASUS ZenWiFi XT9

Model Name

XT9 (W-1-PK)
XT9 (W-2-PK)
XT9 (B-1-PK)
XT9 (B-2-PK)

Network Standard

IEEE 802.11a
IEEE 802.11b
IEEE 802.11g
WiFi 4 (802.11n)
WiFi 5 (802.11ac)
WiFi 6 (802.11ax)
IPv4
IPv6

Product Segment

AX7800 ultimate AX performance : 574+2402+4804Mbps

WiFi Data Rate

802.11a : up to 54 Mbps
802.11b : up to 11 Mbps
802.11g : up to 54 Mbps
WiFi 4 (802.11n) : up to 300 Mbps
WiFi 5 (802.11ac) (1024QAM) : up to 4333 Mbps
WiFi 6 (802.11ax) (2.4GHz) : up to 574 Mbps
WiFi 6 (802.11ax) (5GHz-1) : up to 2402 Mbps
WiFi 6 (802.11ax) (5GHz-2) : up to 4804 Mbps

Antenna

Internal antenna x 6

Transmit / Receive

2.4GHz 2x2
5GHz-1 2x2
5GHz-2 4x4

Processor

1.7 GHz quad-core processor

Memory

256 MB Flash
512 MB RAM

Boosts Speed

OFDMA (Orthogonal Frequency Division Multiple Access)
Beamforming: standard-based and universal
1024-QAM high data rate
20/40/80/160 MHz bandwidth
* The 160MHz bandwidth may be unavailable in the 5GHz band in some regions / countries due to regulatory restrictions.

Operating Frequency

2.4G Hz, 5 GHz-1, 5 GHz-2

Operating Mode

Wireless router mode
Access point mode

I/O Ports

RJ45 for 2.5G BaseT for WAN x 1, RJ45 for Gigabits BaseT for LAN x 3
USB 3.2 Gen 1 x 1

Buttons

WPS Button, Reset Button, Power Switch

LED Indicator

Power x 1

Power Supply

AC Input : 110V~240V(50~60Hz)
DC Output : 12 V with max. 3 A current

Package Content

ZenWiFi XT9
RJ-45 cable
Power adapter
Warranty card
Quick start guide

Product Weight (g)

740g

Product Dimensions

160 x 75 x 161.5 mm

Remark

Content and color may vary in different regions and packages.

AiMesh

AiMesh
Primary AiMesh Router
AiMesh Node

Parental Control

"Allow you to block access to unwanted websites and apps. "
Parental Control - Safe Browsing
Customized Internet Schedule

Router APP

APP: ASUS Router APP

Guest Network

Support Guest Network
Maximum Guest Network Rule : Max 9 rules
Guest Network Connection Time Limit

Security

WPA/WPA2/WPA3-Personal, WPA/WPA2-Enterprise
WPS
Let's Encrypt
DNS-over-TLS
Security Scan
Firewall
Maximum Firewall Keyword Filter : Max 64 rules
Maximum Firewall Network Service Filter : Max 32 rules
Maximum Firewall URL Filter : Max 64 rules

AiProtection

AiProtection Pro
Router Security Assessment
Malicious Site Blocking
Two-Way IPS
Infected Device Prevention and Blocking

VPN

Instant Guard
VPN Client L2TP
VPN Client Open VPN
VPN Client PPTP
VPN Client WireGuard
VPN Server IPSec
VPN Server Open VPN
VPN Server PPTP
VPN Server WireGuard
VPN Fusion

Traffic Control

Adaptive QoS
Bandwidth Monitor
Bandwidth Limiter
Traffic Monitor
Real-time Traffic Monitor
Wired Traffic Monitor
Wireless Traffic Monitor
Traffic Analyzer
Website History

WAN

Dual WAN
DMZ
DDNS

LAN

IGMP Snooping
IPTV
LAN Link Aggregation
Wake on LAN (WOL)

Wireless

UTF-8 SSID
WiFi MAC Address Filter
Maximum MAC Filters : Max 64 rules
Wireless Scheduler
Airtime Fairness
RADIUS Client
Universal Beamforming
Explicit Beamforming

USB application

File System : FS_Tuxera_HFS+, FS_Tuxera_NTFS, FS_Tuxera_vFAT, FS_ext2, FS_ext3, FS_ext4
Safely Remove Disk
AiCloud
Download Master
AiDisk
Media Server
Time Machine
Samba Server
FTP Server
Shared Folder Privileges

Administration

Diagnosis Tools
Feedback System
System Log
New Device Connect Notification
Login Captcha
Connection Diagnosis
Auto Firmware Update
