Chipset
AMD X870E

CPU
Supports AMD Ryzen 9000/ 8000/ 7000 Series Desktop Processors
Socket AM5

Memory
4x DDR5 UDIMM, Maximum Memory Capacity 256GB
Memory Support DDR5 8400+(OC)/ 8200+(OC)/ 8000+(OC)/ 7800(OC)/ 7600(OC)/ 7400(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) MT/s
Ryzen 9000 Series Processors max. overclocking frequency:
1DPC 1R Max speed up to 8400+ MT/s
1DPC 2R Max speed up to 6400+ MT/s
2DPC 1R Max speed up to 6400+ MT/s
2DPC 2R Max speed up to 4800+ MT/s

Supports AMD POR Speed and JEDEC Speed
Supports Memory Overclocking and AMD EXPOTM
Supports Dual-Channel mode
Supports Non-ECC, Un-buffered memory
Supports CUDIMM, Clock Driver bypass mode only*

* CUDIMM support and POR boot frequency may vary by CPU series, with manual overclocking available after boot. Certain CPUs may fail to boot, but future BIOS updates will improve compatibility.
The DIMM slots on this motherboard have double-sided latches.
Memory compatibility and supported speeds can vary depending on the CPU and memory configuration. For detailed information, please refer to the Memory Compatibility List available on the product’s Support page or visit https://www. msi. com/support/.

Onboard Graphics
1x HDMI
Support HDMITM 2.1 with FRL port, maximum resolution of 8K 60Hz*
2x Type-C DisplayPort
USB4® port, supporting DisplayPort 1.4 with HBR3 over USB Type-C, maximum resolution of 4K@60Hz*
*Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.

Slot
3x PCI-E x16 slot
PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU)
PCI_E2 Gen PCIe 5.0 supports up to x4 (From CPU)
PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset)

PCI_E1 & PCI_E2 slots
Supports PCIe 5.0 x16/x0 or x8/x4 (For Ryzen 9000/ 7000 Series processors)
Supports PCIe 4.0 x8/x0 (For Ryzen 8700/ 8600/ 8400 Series processors)
Supports PCIe 4.0 x4/x0 (For Ryzen 8500/ 8300 Series processor)
PCI_E3 slot
Supports up to PCIe 4.0 x4

* PCI_E1 & PCI_E2 & M. 2_2 share the bandwidth, and PCIe version support varies depending on the CPU. Please refer to the PCIe configuration table in the manual for more details.

Audio
Realtek® ALC4080 Codec
7.1-Channel USB High-Performance Audio
Supports up to 32-Bit/384 kHz playback on front panel
Supports S/PDIF output

Storage
4x M. 2
M. 2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices
M. 2_2 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices
M. 2_3 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 22110/2280 devices
M. 2_4 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
4x SATA 6G

* PCI_E1 & PCI_E2 & M. 2_2 share the bandwidth, and PCIe version support varies depending on the CPU. Please refer to the PCIe configuration table in the manual for more details.

RAID
Supports RAID 0, RAID 1 and Raid 10 for SATA storage devices
Supports RAID 0, RAID 1 and Raid 10* for M. 2 NVMe storage devices

* RAID 10 for M. 2 NVMe storage devices is only supported by AMD Ryzen 9000/7000 series CPU.

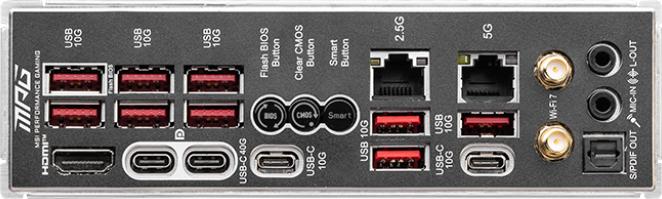

USB
4x USB 2.0 (Front)
4x USB 5Gbps Type A (Front)
9x USB 10Gbps Type A (Rear)
2x USB 10Gbps Type C (Rear)
1x USB 20Gbps Type C (Front)
2x USB 40Gbps Type C (Rear)

LAN
1x Realtek® 8126 5G LAN
1x Realtek® 8125 2.5G LAN

Internal IO
1x Power Connector(ATX_PWR)
2x Power Connector(CPU_PWR)
1x Power Connector(PCIE_PWR 8pin)
1x CPU Fan
1x Combo Fan (Pump_Sys Fan)
5x System Fan
1x EZ Conn-header (JAF_2)
2x Front Panel (JFP)
1x Chassis Intrusion (JCI)
1x Front Audio (JAUD)
1x Thermal Sensor connectors(T_SEN)
3x Addressable V2 RGB LED connector (JARGB_V2)
1x RGB LED connector(JRGB)
4x USB 2.0 ports
4x USB 5Gbps Type A ports
1x USB 20Gbps Type C ports
