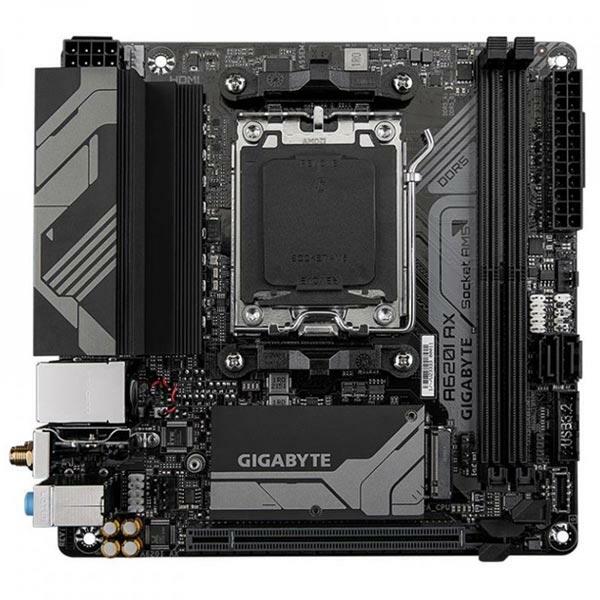

GIGABYTE A620I AX AMD Socket AM5:Supports AMD Ryzen 7000/ Ryzen 8000 Series ProcessorsUnparalleled Performance:5+2+1 Phases Digital VRM SolutionDual Channel DDR5:2*SMD DIMMs with AMD EXPO & Intel XMP Memory Module SupportSuperSpeed Storage:PCIe 4.0 x4 M. 2 ConnectorEZ-Latch:PCIe x16 Slot with Quick Release DesignFast Networks:Wi-Fi 6E 802.11ax & 2.5GbE LANExtended Connectivity:DP, HDMISmart Fan 6:Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOPQ-Flash Plus:Update BIOS Without Installing the CPU, Memory and Graphics CardCPU
AMD Socket AM5, support for: AMD Ryzen 7000/ Ryzen 8000 Series Processors(Please refer "CPU Support List" for more information. ) Chipset AMD A620 Memory Support for DDR5 6400(OC)/6200(OC)/6000(OC)/5600(OC)/5200 /4800/4400 MT/s memory modules2 x DDR5 DIMM sockets supporting up to 96 GB (48 GB single DIMM capacity) of system memoryDual channel memory architectureSupport for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modulesSupport for AMD EXtended Profiles for Overclocking (AMD EXPO) and ExtremeMemory Profile (XMP) memory modules(The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" on GIGABYTE's website for more information. ) BIOS 1 x 256 Mbit flashUse of licensed AMI UEFI BIOSPnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 Graphics Integrated Graphics Processor with AMD Radeon Graphics support:- 1 x DisplayPort, supporting a maximum resolution of 3840x2160@144 Hz* Support for DisplayPort 1.4 version. - 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz* Support for HDMI 2.1 version and HDCP 2.3. ** Support for native HDMI 2.1 TMDS compatible ports. (Graphics specifications may vary depending on CPU support. ) Audio Realtek Audio CODECHigh Definition Audio2/4/5.1/7.1-channel* You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings. LAN Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) Wireless Communication module Realtek Wi-Fi 6E RTL8852CE- WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands- BLUETOOTH 5.3- Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate(Actual data rate may vary depending on environment and equipment. ) Slots CPU:- 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 Storage CPU:- 1 x M. 2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support)Chipset:- 2 x SATA 6Gb/s connectorsRAID 0 and RAID 1 support for NVMe SSD storage devicesRAID 0 and RAID 1 support for SATA storage devices H/W Monitoring Voltage detectionTemperature detectionFan speed detectionWater cooling flow rate detectionFan fail warningFan speed control* Whether the fan speed control function is supported will depend on the fan you install. USB CPU:- 1 x USB Type-C port on the back panel, with USB 3.2 Gen 1 support- 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel- 1 x USB 2.0/1.1 port on the back panelChipset:- 1 x USB Type-C port with USB 3.2 Gen 1 support, available through the internal USB header- 3 x USB 3.2 Gen 1 ports (1 port on the back panel, 2 ports available through the internal USB header)- 4 x USB 2.0/1.1 ports (2 ports on the back panel, 2 ports available through the internal USB header) Connector 1 x 24-pin ATX main power connector1 x 8-pin ATX 12V power connector1 x CPU fan header2 x system fan headers1 x addressable LED strip header1 x RGB LED strip header1 x M. 2 Socket 3 connector2 x SATA 6Gb/s connectors1 x front panel header1 x front panel audio header1 x speaker header1 x USB Type-C header, with USB 3.2 Gen 1 support1 x USB 3.2 Gen 1 header1 x USB 2.0/1.1 header1 x Clear CMOS jumper1 x chassis intrusion header Rear Panel I/O 1 x DisplayPort1 x HDMI port1 x USB Type-C port, with USB 3.2 Gen 1 support1 x USB 3.2 Gen 2 Type-A port (red)1 x USB 3.2 Gen 1 port3 x USB 2.0/1.1 ports1 x Q-Flash Plus button1 x RJ-45 port2 x SMA antenna connectors (2T2R)3 x audio jacks Unique Features Support for GIGABYTE Control Center (GCC)* Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. Support for Q-FlashSupport for Q-Flash Plus Bundled Software Norton Internet Security (OEM version)LAN bandwidth management software Operating System Windows 11, Windows 10 64-bit Form Factor Mini-ITX Form Factor; 17.0cm x 17.0cm

Így is ismerheti: A 620 I AX, A620IAX, A 620I A X
