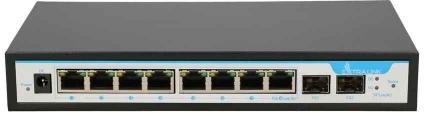

PoE switch for monitoring Extralink PERSES is a 10-port PoE switch with 4 modes of operation : AI QoS mode, AI VLAN mode, AI Extend mode, and smart power mode. The AI QoS mode is ideal for use in monitoring , it makes the video data processed with the highest priority to ensure smooth image quality. Port separation using VLAN functions AI VLAN mode makes ports 1-8 are isolated from each other , which can effectively suppress broadcast storms and improve network performance. Power supply for cameras up to 250 meters and real-time monitoring of equipment operation. In AI Extend 1-8 mode, the ports can effectively transmit data and PoE power up to 250 meters , which is ideal for monitoring systems, cameras and access points. In AI PoE mode, the switch automatically detects the operating status of the connected device and when it detects that it is not working properly and automatically restarts the device. How does the PoE switch work? The device supports the IEEE 802.3af/at standard, which automatically detects and identifies PoE devices that comply with the IEEE 802.3af/at standard and provides power to them, there is no need to worry about the possibility of damaging a device that does not need power through PoE if the switch detects that the device does not comply with the 802.3af/at standard and does not provide power to the device. Main features:

• AI Extend mode: ports 1-8 support 250 meters of power (use Cat5e or Cat6 cable)
• AI VLAN mode: Isolate ports 1-8 from each other
• AI QoS Mode: Adjust the priority of video data packets. Transmission of video surveillance is smoother
• AI PoE Mode: Automatically detects devices that are not responding, turns off the PoE power on the port to which the device is connected and restarts the power supply
• IEEE 802.3af/at support
• Auto MDI/MDIX support
• Store-and-forward
Power circuit protection, to protect terminal equipment
• Fanless design to save energy
• Energy saving function on unused ports

|Basic switching RJ-45 Ethernet ports type 13502__gigabit_ethernet_10_100_1000Basic switching RJ-45 Ethernet ports quantity 10.0000Power source 1390__mains_electricityHeight 27,0000Width 184,0000Depth 92,0000Product colour 1766__blackSwitching capacity 20,0000Networking standards 1802__ieee_802_3af, 1802__ieee_802_3at, 1802__ieee_802_3i, 1802__ieee_802_3u, 1802__ieee_802_3xPower over Ethernet (PoE) TakStackable NieSwitch type 3769__unmanagedRack mounting NieHousing material 5214__metalMAC address table 4096,000010G support NieWeight 1025,0000Power supply included Tak"non_mandatory_name":"DIN rail mounting", "non_mandatory_value":"Nie", "non_mandatory_name":"Fiber uplink ports quantity", "non_mandatory_value":"8.0000", "non_mandatory_name":"Gigabit Ethernet (copper) ports quantity", "non_mandatory_value":"10.0000", "non_mandatory_name":"LED indicators", "non_mandatory_value":"Link", "non_mandatory_name":"Power connector", "non_mandatory_value":"DC-in jack", "non_mandatory_name":"Power over Ethernet (PoE) ports quantity", "non_mandatory_value":"8.0000", "non_mandatory_name":"Power over Ethernet (PoE) type supported", "non_mandatory_value":"Active PoE", "non_mandatory_name":"Quality of Service (QoS) support", "non_mandatory_value":"Tak", "non_mandatory_name":"Reset button", "non_mandatory_value":"Nie", "non_mandatory_name":"Switch layer", "non_mandatory_value":"L2+", "non_mandatory_name":"Uplink ports quantity", "non_mandatory_value":"2.0000"
