GPU
NVIDIA GeForce RTX 4070 Ti SUPER
Memory
16GB GDDR6X, 256bit, 21Gbps, 1313MHz, 672GB/?s
clock Base
2340MHz
clock Boost
2610MHz
overclock
-

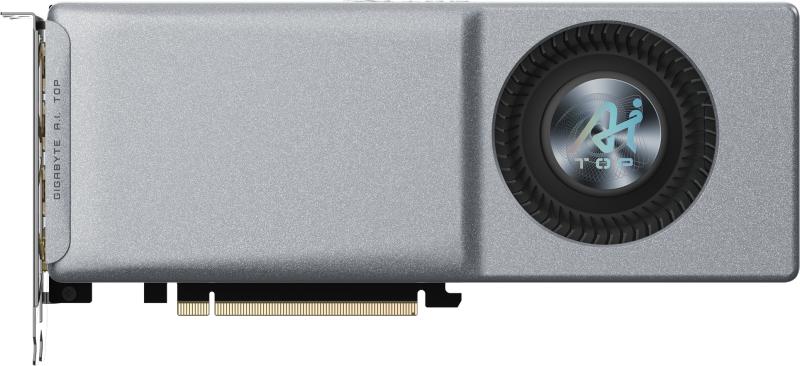

Cooling
1x radial-fan (80mm)
TDP/TGP
285W (NVIDIA)
NPU-Computing power
706 TOPS (NVIDIA)
GPU-Computing power
44.1 TFLOPS (FP16), 44.1 TFLOPS (FP32), 0.69 TFLOPS (FP64)
Power connections
1x 16-Pin PCIe 5.0 (via adapter: 2x 8-Pin PCIe)

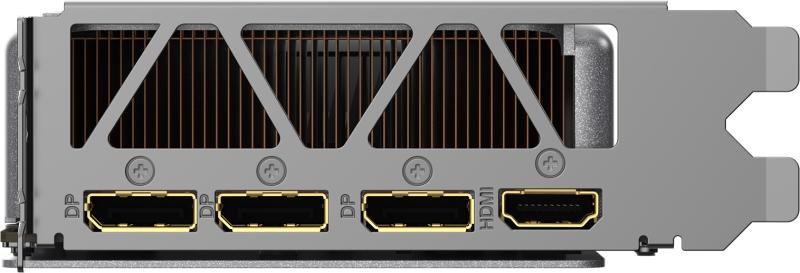

Connectors
1x HDMI 2.1a, 3x DisplayPort 1.4a
Interface
PCIe 4.0 x16
Special features
NPU, Backplate, NVIDIA GeForce SFF-Ready
total height
Dual Slot
Dimensions
260x111x40mm (LxWxH)
Type
PCIe card (full height)
PCI slot bracket
full height
Chip-data
Chip-Architecture
Ada Lovelace (from 2022/?Q3)
Chip-title
AD103-275-A1
Chip-Configuration
66SM (8448SP /? 264TMU /? 96ROP), 66 RT Cores, 264 Tensor Cores, 48MB L2 cache
Chip-Manufacturing Process
TSMC 5nm "NVIDIA 4N"
Chip size
379mm2, monolithisch, 45.9 Mrd. Transistoren
Chip-functions
Raytracing (3rd Gen NVIDIA RTX), NVIDIA Tensor (4th Gen), HDCP 2.3
API-support
DirectX 12 Ultimate (12_2) /? CUDA 8.9 /? Vulkan 1.3 /? OpenCL 3.0 /? OpenGL 4.6 /? Shader Model 6.7
