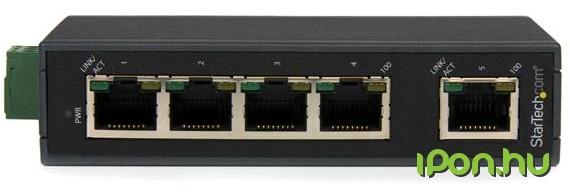

Startech 5-Port Industrial Ethernet Switch - DIN Rail Mountable (IES5102) Warranty InformationWarranty 2 Years HardwareIndustry Standards IEEE 802.3 (10BASE-T), IEEE 802.3u (100BASE-TX) IEEE 802.3az (Energy-Efficient Ethernet) IEEE 802.1P Quality of Service (QoS)Interface RJ45 (10/100 Ethernet)Ports 5Regulatory Approvals EN61000-6-2 EN61000-6-4 EN61000-4-3 (Radiated RFI Standards) EN61000-4-4 (Burst Standards) EN61000-4-6 (Induced RFI Standards) EN61000-4-8 (Magnetic Field Standards) IEC60068-2-6 Fc (Vibration) IEC60068-2-27 Ea (Shock) PerformanceAuto MDIX YesAuto-Negotiation YesBuffer Size 56 KBCompatible Networks 10/100 MbpsFlow Control IEEE 802.3x Full-DuplexFull Duplex Support YesJumbo Frame Support NoMaximum Cable Length 328 ft [100 m]Maximum Data Transfer Rate 200 Mbps (Full-Duplex)MTBF 1,179, 133 HoursSurge Protection ESD: EN61000-4-2 Surge: EN61000-4-5Switching Architecture Store-and-Forward Connector(s)External Ports 5 - RJ-45 Female 1 - Terminal Block (3 Wire) SoftwareOS Compatibility OS Independent; No additional drivers or software required IndicatorsLED Indicators 1 - Power 5 - Link/Activity 5 - Activity (100 Mbps) PowerInput Voltage 12 ~ 48 DCPower Consumption (In Watts) 2.12W MaxPower Source Terminal Block EnvironmentalHumidity 5~95% RH (Non-Condensing)Operating Temperature -10°C to 60°C (14°F to 140°F)Storage Temperature -25°C to 85°C (-13°F to 185°F) Physical CharacteristicsColor BlackEnclosure Type PlasticProduct Height 4.3 in [110 mm]Product Length 2.8 in [70 mm]Product Weight 5.2 oz [148 g]Product Width 1 in [25 mm] Packaging InformationShipping (Package) Weight 11.8 oz [335 g] What's in the BoxIncluded in Package 1 - 5 Port Ethernet Switch (w/ Attached DIN Rail Bracket) 1 - Terminal Block 1 - Instruction Manual CD This compact 5-port industrial Ethernet switch is engineered to deliver fast, reliable network connectivity and durability in the most demanding industrial environments. It provides top performance in a wider range of operating temperatures than conventional network switches, making it ideal for factories and warehouses. Conquer the tough demands of industrial environments Designed with a rugged IP30-rated housing, the network switch delivers maximum performance even in harsh industrial conditions. Its wide-range terminal block input gives you the flexibility to power the switch as required, based on your own power input source, while its wide operating temperature range keeps your network running smoothly. Get up and running in no time This industrial Ethernet switch is easy to install, with an attached metal bracket for DIN rail mounting on equipment racks and cabinets. Now you can eliminate the hassle of troubleshooting mismatched speed and duplex settings. This switch gives you full/half-duplex auto-negotiation and auto MDI/MDIX operation, enabling you to connect your network devices quickly and easily with little to no configuration required. Reduce your energy costs with Energy-Efficient Ethernet With lower overall power consumption, the Ethernet switch enhances your energy efficiency, in turn helping you reduce monthly costs. The IES5102 is backed by a StarTech. com 2-year warranty and free lifetime technical support.

Így is ismerheti: IES 5102
