Part No
90NR0II5-M000F0

Model Name
G614JVR-N4014W

TTV
2023-10-30

End of Production
2024-12-31

EAN Code
4711387413524

UPC Code
197105413528

WEEE
3.053

BASE UNIT
VSNR0II5-BU1111




Marketing Name
ROG Strix G16

Color
Eclipse Gray

Dimension (W x D x H)
35.4 x 26.4 x 2.26 ~ 3.04 cm (13.94" x 10.39" x 0.89" ~ 1.20")

Weight
2.50 Kg ( lbs)

Processor
Intel Raptor Lake i9-14***HX-T6K(8P+16e)

Chipset
Mobile Intel® HM770 Express Chipsets

Discrete/Optimus
MUX Switch + NVIDIA® Advanced Optimus

Graphic
NVIDIA® GeForce RTX 4060 Laptop GPU

Graphic Wattage
ROG Boost: 2420MHz* at 140W (2370MHz Boost Clock+50MHz OC, 115W+25W Dynamic Boost)

Graphic Memory
8GB GDDR6

IGPU
Intel® UHD Graphics

Panel Size
16-inch

Resolution
QHD+ 16:10 (2560 x 1600, WQXGA)

Refresh Rate
240Hz

Response Time (G2G)
3ms

Viewing Angle
170

Panel Tech
IPS-level

Brightness
500nits

Contrast
1200:1

DCI-P3 %
100%

Anti glare
Anti-glare display

Adaptive-Sync technology
G-Sync

Pantone
Pantone Validated

Nebula Display
ROG Nebula Display

Support Dolby Vision HDR
Yes

Thermal Feature
ROG intelligent cooling

On board memory
N/A

DIMM Memory
16GB DDR5-5600 SO-DIMM, the memory speed of the systems vary by CPU SPEC

Total System Memory
DDR5 16GB

Memory Slot
2x SO-DIMM slots

Memory Max.
32GB

Multi-channel memory technology
Support dual channel memory

System Storage Installed
1TB PCIe® 4.0 NVMe M. 2 SSD

M. 2 slots support either SATA or NVMe
2

M. 2 SSD Support List
512G/ 1TB /2TB G4x4 PCIe SSD

Expansion Slot (includes used)
2x DDR5 SO-DIMM slots2x PCIe

LAN
10/100/1000 Mbps

Wi-Fi/Bluetooth
Wi-Fi 6E(802.11ax) (Triple band) 2*2 + Bluetooth® 5.3 Wireless Card (*Bluetooth® version may change with OS version different. )

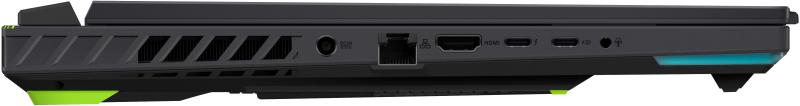

I/O Ports
1x RJ45 LAN port1x Thunderbolt 4 support DisplayPort1x USB 3.2 Gen 2 Type-C support DisplayPort / power delivery / G-SYNC2x USB 3.2 Gen 2 Type-A

Display output
1x HDMI 2.1 FRL

Audio
1x 3.5mm Combo Audio Jack

Webcam
720P HD camera

Mic
Built-in array microphone

Keyboard Type
Backlit Chiclet Keyboard Per-Key RGB

NumberPad
Support NumberPad

Aura Sync
Yes

Speakers
2-speaker system with Smart Amplifier Technology

Audio Tech
AI noise-canceling technologyDolby AtmosHi-Res certificationSmart Amp TechnologySupport Microsoft Cortana near field/Far field

Operating System
Windows 11 Home

Antivirus
McAfee® 30 days free trial

Xbox Game Pass
Xbox Game Pass Ultimate_3 months (*Terms and exclusions apply. Offer only available in eligible markets for Xbox Game Pass Ultimate. Eligible markets are determined at activation. Game catalog varies by region, device, and time. )

Security
BIOS Administrator Password and User Password ProtectionTrusted Platform Module (Firmware TPM)

Battery
90WHrs, 4S1P, 4-cell Li-ion

Fast charging
Recharge from 0-50% in 30 minutes

Power
o6.0, 280W AC Adapter, Output: 20V DC, 14A, 280W, Input: 100~240C AC 50/60Hz universal

Ecolabels & Compliances
ENERGY STAR®
