Part No
90NX0751-M00JD0

Sales Model Name
B5604CMA-QY0478

EAN Code


UPC Code


WEEE
1.47

BASE UNIT
VSNX0751-BU3133

Operating System
Non-preinstalled OS

Office


LCD cover-material
Aluminum

LCD cover-color
Star Black

Top case-material
Aluminum + MgAl

Top case-color
Star Black

Bottom case-material
Aluminum

Bottom case-color
Star Black

Military grade
US MIL-STD 810H military-grade standard

Panel Size
16.0-inch

Backlit
LED Backlit

OLED


Brightness
500nits

Resolution
WQXGA (2560 x 1600) 16:10

Glare
Anti-glare display

Color gamut
DCI-P3: 100%

View angle(H/V)
178/178

Response time(Typ/Max) (ms)
25/30

Refresh rate
120Hz

Contrast  (Typ)
1500:1

Touch Panel
Non-touch screen

Screen-to-body ratio
85 %

Pantone


IPS-level
Wide view

VESA CERTIFIED Display HDR


Processor
Intel® Core Ultra 7 Processor 155H 1.4 GHz (24MB Cache, up to 4.8 GHz, 16 Cores) Intel® AI Boost NPU

Neural processor
Intel® AI Boost NPU

Chipset
N/A

Discrete/Share
Share

Integrated GPU
Intel® Graphics

VRAM
N/A

How to upgrade memory
Upgradable Need to remove bottom/top case

Expansion Slot(includes used)
2x DDR5 SO-DIMM slots1x M. 2 2230 PCIe 4.0x41x M. 2 2280 PCIe 4.0x4

On board memory
N/A

DIMM Memory
16GB DDR5 SO-DIMM

Total System Memory
DDR5 16GB

Storage
1TB M. 2 2280 NVMe PCIe® 4.0 SSD

SSD Cache
N/A

Front-facing camera
1080p FHD cameraWith privacy shutter

Wireless
Wi-Fi 7(802.11be) (Triple band) 2*2 + Bluetooth® 5.4 Wireless Card

On board Wireless


WWAN
4G LTE support (in selected territories)

NumberPad
N/A

FingerPrint
FingerPrint

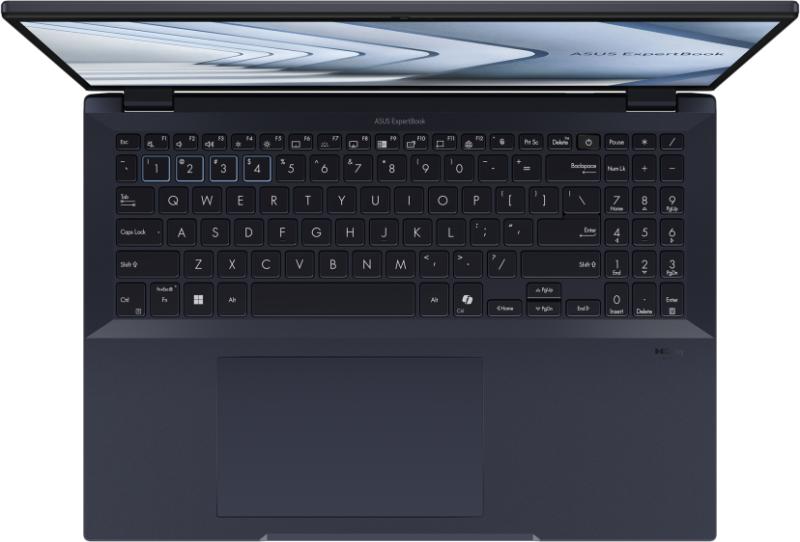

Keyboard type
Backlit Chiclet Keyboard

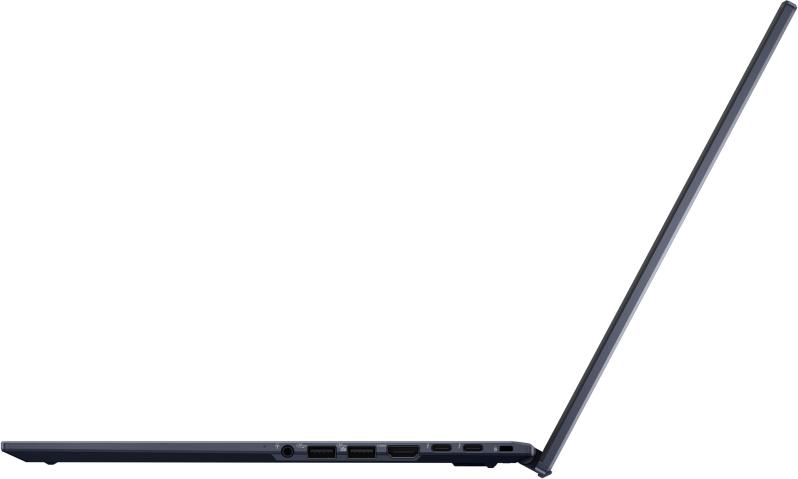

I/O ports
2x USB 3.2 Gen 2 Type-A2x Thunderbolt 4, compliant with USB4, supports display / power delivery1x HDMI 2.1 TMDS1x 3.5mm Combo Audio Jack1x RJ45 Gigabit EthernetN/A

Audio
Dolby AtmosBuilt-in array microphone

Battery
63WHrs, 3S1P, 3-cell Li-ion

AC Adapter
TYPE-C, 65W AC Adapter, Output: 20V DC, 3.25A, 65W, Input: 100~240V AC 50/60Hz universal

Dimension (WxHxD)
35.80 x 25.43 x 1.89 ~ 2.29 cm (14.09" x 10.01" x 0.74" ~ 0.90")

Weight (with Battery)
1.71 kg (3.77 lbs) // 63 WHrs battery

Weight (w/ 2nd Battery)


Weight (w/ 3rd Battery)


Weight (w/o Battery)
1.47 kg (3.24 lbs)

Security
Fingerprint sensor integrated with Power KeyKensington Nano Security Slot(6x 2.5mm)BIOS Booting User Password ProtectionBIOS setup user passwordHDD User Password Protection and SecuritySupport Absolute Persistence 2.0 (Computrace)Trusted Platform Module (TPM) 2.0N/A

Antivirus


MyASUS feature
System diagnosisBattery health chargingFan ProfileSplendidTru2LifeFunction key lockWiFi SmartConnectAppDealsLink to MyASUS

Built-in Apps
MyASUS

Disclaimer for Built-in Apps
Built-in Apps vary from OS SKU. *MyASUS/McAfee don"t support in Pure OS/without OS/G sku/Win SE/Windows on ARM/Linux OS (ex. Endless, Kylin, Ubuntu)

Included in the Box


Reparability Index (for France)
8.4

Ecolabels & Compliances
EPEAT GoldEnergy star 8.0FSC RecycledREACHRoHS

Warranty
3Y PUR

Battery warranty
Commercial NB Battery warranty follow system warranty. * BP series Battery warranty 4Y-5Y by WEP option* Chromebook series Battery warranty 2Y-5Y by WEP option
